The

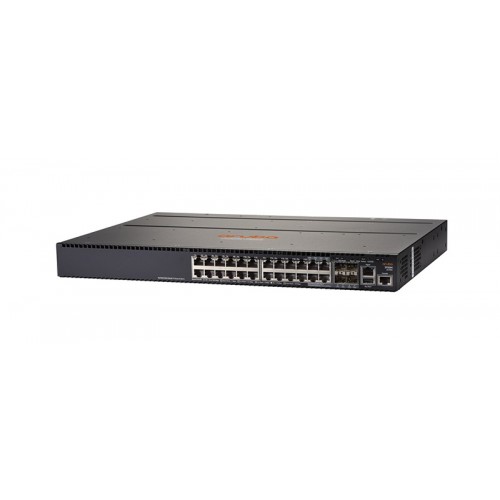

HPE JL319A Aruba 2930M Switch Series is designed for mobile-friendly digital workplaces. Advanced security and network management tools such as Aruba ClearPass Policy Manager, Aruba AirWave, and cloud-based Aruba Central make these Layer 3 access switches simple to deploy and administer. For enterprise edge, SMB, and branch offices, modular stacking, uplinks, and power provide scalability and simplicity. With support for static, RIP, and Access OSPF routing, 10GbE and 40GbE uplinks, HPE Smart Rate, PoE+, powerful QoS, SDN, and no software licence, the 2930M delivers performance and value. What's new: Aruba Layer 3 switch series that is simple to deploy and administer using Aruba ClearPass Policy Manager and Aruba Airwave on-premise. - Simplify with Zero Touch Provisioning and Aruba Central support in the cloud. - Scale with up to 1440W PoE+ and modular 10 chassis stacking. - HPE Smart Rate multi-gigabit capability with modular 10GbE and 40GbE uplinks.OpenFlow-optimized for cutting-edge SDN applications. Features Layer 3 Access Switches with High Performance - The Aruba 2930M Switch Series provides enterprise edge, SMB, and branch office networks with performance, security, and ease of use. - Aruba ClearPass Policy Manager, Aruba Airwave, and Aruba Central are unified management solutions that are optimised for the digital workplace. When linked to Aruba access points, it automatically configures PoE priority, VLAN configuration, and rogue AP confinement. - Modular stacking (10 chassis) and modular 10GbE (SFP+) and 40GbE (QSFP+) uplinks are available on a pay-as-you-grow basis. HPE Smart Rate multi-gigabit Ethernet support for high-speed APs over existing cabling, as well as upgradeable power supply, enable your network to scale quickly when more PoE+ is required. - Access OSPF, static and RIP routing, ACLs, Tunnel Node, sFlow, and IPv6 are all included in the robust Layer 3 feature set, which requires no software licencing.
Management features |
---|
Multicast support | Yes |
Switch type | Managed |
Web-based management | Yes |
Quality of Service (QoS) support | Yes |
Switch layer | L3 |
Ports & interfaces |
---|
Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
Basic switching RJ-45 Ethernet ports quantity | 20 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Combo SFP ports quantity | 4 |
Network |
---|
IGMP snooping | Yes |
Auto-sensing | Yes |
Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
Full duplex | Yes |
VLAN support | Yes |
Spanning tree protocol | Yes |
Rate limiting | Yes |
Link aggregation | Yes |
IP routing | Yes |
Flow control support | Yes |
Auto MDI/MDI-X | Yes |
10G support | Yes |
Virtual LAN features |
---|
VLAN support | Yes |
Performance |
---|
Packet buffer memory | 12.38 MB |
Stackable | Yes |
Processor frequency | 1016 MHz |
Memory type | DDR3-SDRAM |
Internal memory | 1024 MB |
Built-in processor | Yes |
Technical details |
---|
Form factor | 1U |
Product colour | Grey |
Stackable | Yes |
Processor frequency | 1016 MHz |
Rack mounting | Yes |
Built-in processor | Yes |
Data transmission |
---|
Throughput | 95.2 Mpps |
Latency (10-100 Mbps) | 11.8 µs |
Latency (1 Gbps) | 3.1 µs |
Latency (10 Gbps) | 3.4 µs |
Packet buffer memory | 12.38 MB |
MAC address table | 32768 entries |
Switching capacity | 128 Gbit/s |
Security |
---|
Authentication | MAC-based authentication, Web-based authentication |
SSH/SSL support | Yes |
IGMP snooping | Yes |
Access Control List (ACL) | Yes |
DHCP features | DHCP server |
Multicast features |
---|
Multicast support | Yes |
Memory |
---|
Packet buffer memory | 12.38 MB |
Memory type | DDR3-SDRAM |
Internal memory | 1024 MB |
Design |
---|
Form factor | 1U |
Product colour | Grey |
Stackable | Yes |
Rack mounting | Yes |
Power |
---|
Power supply included | Yes |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Power consumption (typical) | 93 W |
Power over Ethernet (PoE) |
---|
Power over Ethernet (PoE) | No |
Operational conditions |
---|
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 55 °C |
Operating relative humidity (H-H) | 15 - 95% |
Heat dissipation | 145 BTU/h |
Weight & dimensions |
---|
Width | 442.5 mm |
Depth | 324.3 mm |
Height | 43.9 mm |
Weight | 4.45 kg |
Products with variety of different conditions
We at APEX IT DEVICES LTD offers IT & Allied products in different "conditions" because we strongly believe in the recycling of equipment already used and to reserve large profit margins for its customers. We can arrange for you a wide range of products and solutions at competitive prices, with a reduction of upto 90% in the purchase price compared to the new product.
Alternative products is state of the art solution to the new product from which it differs in most cases only for a different packing and or a little lower outlook level, but whose perfect functioning is always guaranteed to the maximum as the new product.
The sale of refurbished products represents a significant demonstration of attention to the environmental issues to which our company has always paid attention and contributed towards environmental protection.
NEW BULK
New spare parts with neutral packaging (box or envelope). These are products belonging to bundles or special sales offers (set of several products and / or configurations) and consequently without the manufacturer's original packaging. Guarantee provided by APEX IT with different duration and methods of intervention based on the product category and brand.
NEW OPEN BOX
Products in this category are new product to which only the original external packaging has been opened for possible checks, warranties, functionality or by mistake. Rest assured warranty equal to the new one provided by the manufacturer to the extent and within the times indicated in the product sheet and in the accompanying information material. To supplement the basic warranty, support options provided by the vendor are available like a new product.
NEW RETAIL
New Retail Products warranty provided by the manufacturer to the extent and timing indicated in the product sheet and in the accompanying information material. New product with packaging and warranty as provided by the vendor/manufacturer for so-called “shelf” products and therefore with packaging provided for the sale of even the single piece. To supplement the basic warranty, support options provided by the vendor or manufacturer or alternatively APEX IT is also available with the additional support and assistance services.
NEW SPARE
New spare parts but without original packaging as they are shipped in special multi-product containers. They have a different code from the corresponding new retail code as provided by the vendor. Warranty provided by the manufacturer to the extent and timing indicated in the product sheet and in the accompanying information material.
DAMAGED BOX
New product with little damaged outer packaging due to in transit mishandling by the courier companies. Rest assured warranty equal to the new one provided by the manufacturer to the extent and within the times indicated in the product sheet and in the accompanying information material. To supplement the basic warranty, support options provided by the vendor are available like a new product.
EX DEMO
Used product but of recent manufacture used for demonstrations at the fair or at customers. In excellent working condition. Guarantee provided by APEX IT with different duration and methods of intervention based on the product and brand. To integrate the basic APEX IT makes available.
FACTORY REFURBISHED
Refurbished products and tested by the vendor, with original packaging or alternative packaging available. 30-90 days warranty provided by the vendor depending on the type and brand of product. To supplement the basic warranty, support options provided by the vendor are available like a new product or alternatively APEX IT makes available the additional support and assistance services to its valued customers.
OEM
New product branded with the company logo that originally made the component for the major vendors on the market. Warranty provided by the manufacturer to the extent and timing indicated in the product sheet and in the accompanying information material.
REFURBISHED
Product reconditioned and tested in all its parts, with neutral packaging. APEX IT offers exclusively products with a degree of reconditioning:Product reconditioned and tested in all its parts, with neutral packaging. APEX IT offers exclusively products with a degree of reconditioning:
A Category |
B Category |
C Category |
In this category products in excellent aesthetic and functional conditions comparable to a new product |
In this category products in good aesthetic and functional conditions |
In this category products that may have normal condition and slight external beauty imperfections |
Warranty 30-180 days or 1-2 Years in some cases depending on the type and brand of product, provided by APEX IT
To integrate the APEX IT makes available the additional support and assistance services t its customers as and when required.
RENEW
They differ from the New Retail (new) product only for the presence of the letter “R” in addition to the product code (present both on the label of the external packaging and on the one positioned on the product). The products belonging to the "HP Renew Program" packaged in the manufacturer's original packaging. Appearance, packaging, manuals, DO NOT differ from New Retail, see HP Renew Program. Like new HP products, the warranty period starts from the date of purchase and is provided by the manufacturer to the extent and within the timing indicated in the product sheet and in the information material. To supplement the basic warranty, support options provided by the vendor are available like a new product or alternatively we make available the additional support and assistance services.
USED
These are entire apparatuses or spare parts removed from machines withdrawn and consequently used. The product used with normal packaging (box or envelope). Guarantee provided by APEX IT 1-3 months from the date of purchase.
